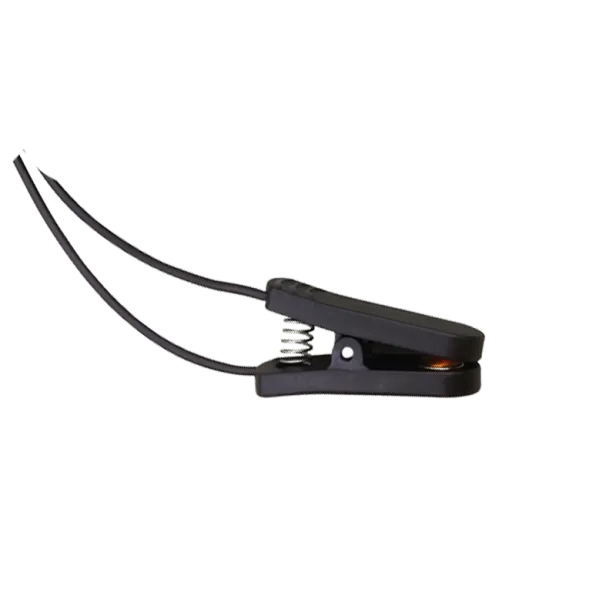

Reusable Bipolar Ear Clip Electrode
P/N: 81014100013
Ear-clip EEG electrodes are a type of EEG electrode designed to be attached to the earlobe,
Using TPU soft and tough wire, the signal is clear and stable,
safe DIN42 802 anti-touch connector,
low offset voltage, low noise, high stability.
Reusable Ear Clip EEG Electrode
Introduction
The Sinelink Gold-plated Ear Clip Electrode is a unipolar gold-plated EEG ear clip electrode on one end and a 1.5mm DIN42802-1 connector on the other end.
Use with standard DIN1.5mm socket.
Wires and connectors can also be customized.
Specification
|
Product Name |
Reusable EEG Ear Clip Electrode |
|
P/N |
81014100013 |
|
Elctrode |
Copper gold plated |
|
Wire size |
1.0m 1.5m 2.0m 2.5m |
|
Wire material |
TPU |
|
Connector Type |
DIN42802 / pin |
|
Color code |
|
|
Patibility |
Compatible with standard EEG systems and amplifiers |
|
Certificate: |
ISO 13485:2016 |
|
Packing |
1Pcs/bag |
Features and application
Feature
- Comfortable design: can be worn for a long time without any discomfort in the ears
- Easy to apply: detachable structure, ready to use
- Compared with traditional EEG electrodes, ear clip elctrode preparation time is short
- Portable: Can be used in a variety of settings, including clinical settings, research laboratories, and even home environments.
Application
- Sleep Study
- Stress Monitoring
- Attention monitoring
- Neurofeedback training
- Medical Diagnosis
Qualification
Sinelink is comply with ISO13489:2016 and has the ability to design and manufacture a full range of neurodiagnostic suppliers. With years' experiences, we are able to serve customers from all over the world and gain fabulous reputation from our cooperators.
FAQ
Q: What conditions can ear clip electrodes monitor or treat?
1)Epilepsy: Uses reference or ground signals in EEG setups to detect and analyze seizure activity.
2)Sleep Disorders: (Cables and Sensors): Tracks brain wave activity to identify disorders like narcolepsy, sleep apnea, and insomnia.
3)Brain Injuries: Evaluates patients' brain function following a stroke or traumatic brain injury.
4)Neurodevelopmental Disorders: Used to assess brain activity in disorders such as ADHD and autism.
Q: How do you attach ear clip electrodes?
1)Get the electrodes ready: Make sure there is no dirt or debris on the electrodes that could affect their conductivity.
2)Determine which electrodes are in your left and right ears: Most ear clip electrodes have labels on them.
3)The electrode should be positioned such that the metal contacts of the clip electrode are in contact with the skin of the earlobe.
4)To firmly fix the electrode on the earlobe, gently squeeze the clip.
5)Should you be employing electrodes in both ears, carry out the same procedure on the opposite earlobe.
6)Make that the electrodes are comfortable and make excellent contact with the skin by checking their conductivity.
