Karl Storz Bipolar Cable Cord
P/N: 79064300058

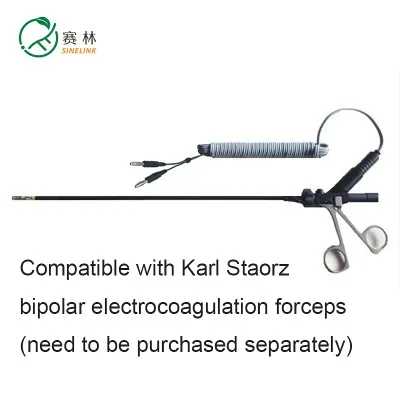

The Slinelink Karl Storz bipolar cable cord is applied to Karl Storz® Instruments for laparoscopic and compatible with Aesculap®, Erbe® ICC International, Conmed® ACMI®, Codman®, Olympus®, Valleylab®, US Standard® and so on.
Karl Storz Bipolar Cable Cord
Introduction

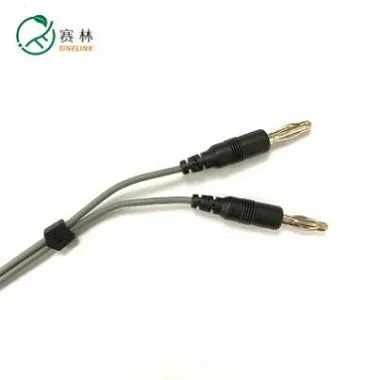

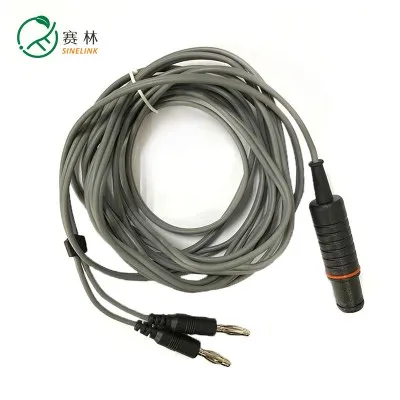

Karl Storz bipolar cable cord consists of Karl Storz® type connector and 2- Φ4mm banana plug, and the 3m double single-core paralleled wire of silicone material.
The product connects High Frequency Power Supply and neutral electrodes, which offers high frequency power for surgical instrument.
As reusable bipolar forceps cable, it also supports customization to the required length besides the length of 3m.
Specification
|
Product name |
Karl Storz bipolar cable cord |
|
Item no. |
79064300058 |
|
Generator side |
2- Φ4mm banana plug |
|
Instrument side |
Karl Storz® type connector |
|
Cable length |
10ft(3.0m) |
|
Wire material |
Silicone, gray |
|
Instrument type |
Tweezers, clip, pincers |
|
Disinfecting type |
Medical alcohol |
|
Shelf life |
3 years |
|
Certificate |
ISO 13485:2016 |
Features and application
- Durability and adaptability:
Plastic injection on the basis of silicone wire - as the diathermy cable, it is resistant to high temperature, high pressure and wear so that it can be very well adapted to the surgical environment.
- Design for patibility:

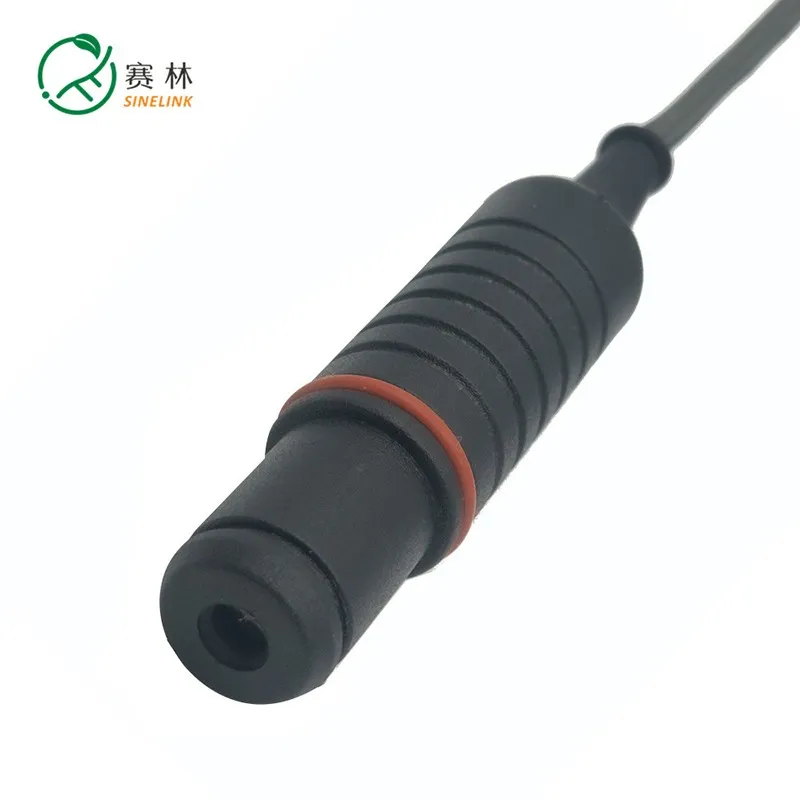

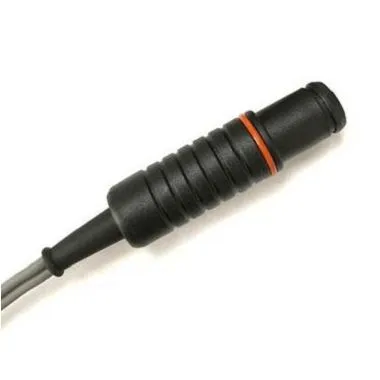

The design of making different inner diameters of different parts in the Karl Storz® type connector can better adapt to the corresponding specifications of the instrument, and the design of red silicone ring can increase the friction force during connecting to ensure the stability of the connection.
- Tangle free lead wire:
The wire of Karl Storz bipolar cable cord is soft and flexible and the design of double single-core paralleled wire and the wire nail is simple and clever, which avoid tangling during procedures and also make storage and sorting more convenient.
- Repeatability and disinfection:
Disinfect with medical alcohol before and after each use is necessary for reusable cable, which also can extend its service life as soon as possible.
- 100% testing before storage:
Continuity test - 100% continuity test ok, no short-circuit / disconnection / dislocation, conduction impedance <1Ω;
Hi-pot test - The voltage between core and core withstand 1500V/50Hz/60s, leakage current less than 0.2mA (no breakdown, flicker, arc and other phenomena);
Strength - The force to pull out between plug and surgical equipment socket ≥12N, wire rod: 10Ibs(44.5N).
- Comply with EU Directive 2011/65/EU.
Details
Qualification
Sinelink is comply with ISO13489:2016 and has the ability to design and manufacture a full range of electrosurgical cables, all of our procucts Comply with EU Directive 2011/65/EU. With years' experiences, we are able to serve customers from all over the world and gain fabulous reputation from our cooperators.
FAQ
Q: What is a Karl Storz Bipolar Cable Cord?
Q: How do I use a Karl Storz Bipolar Cable Cord?
Meanwhile, because the wire itself is resistant to high temperature and pressure, you can also use 134 degrees high temperature and pressure disinfection.
Q: What types of procedures require a Karl Storz Bipolar Cable Cord?
Q: Can the Karl Storz Bipolar Cable Cord be sterilized?
Q: How do I troubleshoot issues with a Karl Storz Bipolar Cable Cord?
Q: How long does a Karl Storz Bipolar Cable Cord last?
