Name: China Concentric Needle Electrode Manufacturers Suppliers Factory - Customized Service - Sinelink Electronics
Brand: Sinelink
SKU: 240322980

Description

Technical Parameters

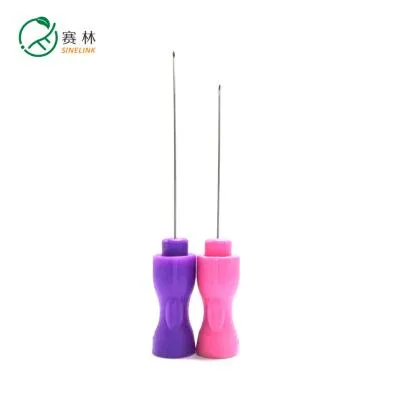

Disposable EP EMG concentric needle electrode

The concentric needle electrode is used in stimulation, monitoring and stimulation of biopotential signals including electromyograph (EMG) and nerve potential signals.

Sinelink concentric needle electrodes are with machine sharpened tips and smooth coating, offering excellent noise reduction.

Disposable EP EMG concentric needle electrode

Introduction

Each Sinelink EEG concentric needle electrode is tested mechanically and electrically to ensure long life.

Specification

Length	25-75mm
Needle OD	0.30-0.65mm
Packing	25pcs/Box
Color	Purple, pink, yellow or customized color
Shelf life	36 months
Sterilization	EO

Features and application

Smooth coating
Easy to use
Ideal for EMG monitoring
Color coded hub
Customization available

Details

Color-coded hub

EO sterilization

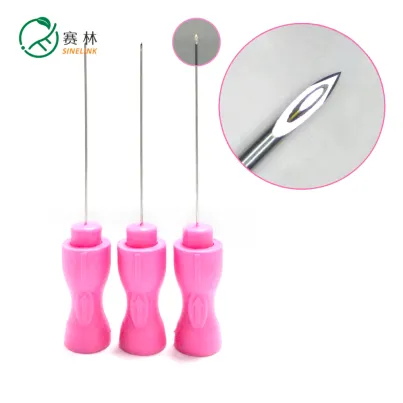

Machine sharpened tips

Specification

Specification	Description
EMG25/0.30	Needle length 25mm,Needle OD 0.30mm
EMG25/0.35	Needle length 25mm,Needle OD 0.35mm
EMG30/0.40	Needle length 30mm,Needle OD 0.40mm
EMG28/0.45	Needle length 28mm,Needle OD 0.45mm
EMG30/0.45	Needle length 30mm,Needle OD 0.45mm
EMG37/0.45	Needle length 37mm,Needle OD 0.45mm
EMG38/0.45	Needle length 38mm,Needle OD 0.45mm
EMG50/0.45	Needle length 50mm,Needle OD 0.45mm
EMG50/0.50	Needle length 50mm,Needle OD 0.50mm
EMG50/0.60	Needle length 50mm,Needle OD 0.60mm
EMG75/0.60	Needle length 75mm,Needle OD 0.60mm
EMG75/0.65	Needle length 75mm,Needle OD 0.65mm

FAQ

Q: What is a disposable EP EMG concentric needle electrode?

A: A single-use medical device called a disposable EP (electrophysiology) EMG (electromyography) concentric needle electrode is used to record the electrical activity in muscles. It is intended to ensure patient safety and hygiene by removing the possibility of cross-contamination associated with reusable electrodes, in addition to providing accurate and dependable signals for the diagnosis of neuromuscular disorders.

Q: How does a concentric needle electrode work?

A: An inner core wire and a fine, insulated needle make up a concentric needle electrode. It captures the electrical signals produced by muscle fibers when implanted into a muscle. After that, these signals are sent to an EMG device for examination. The concentric design facilitates highly accurate isolation and recording of the electrical activity of particular muscles.

Q: Why are these electrodes disposable?

A: Disposable electrodes are meant to be used just once in order to avoid infection and cross-contamination. Before being used, every electrode is individually packaged and pre-sterilized to guarantee that it is pathogen-free. This improves patient safety and streamlines healthcare providers' workflow.

Q: How should disposable EMG needles be disposed of?

A: Disposable EMG needles should be stored in a designated sharps container after use to avoid contamination and injury. Following that, these containers ought to be handled and disposed of in accordance with regional medical waste regulations.

Q: What material is used to made a concentric needle?

A: Stainless steel and silver.

Q: Why is an ultra-sharp tip is necessary for a concentric needle ?

A: A ultra-sharp tip could make the insertion easy and cause less pain for the patient.

Q: Does Sinelink also provide wires for the concentric needle electrode?

A: Yes, we offer the whole set of concentric needle electrode and reusable wires for concentric needle electrodes, customization is also available in Sinelink.
