Reusable laparoscopic Bipolar cable for R.Wolf
P/N: 79063300058
2* 4.0mm banana plug, R.Wolf® type connector
Cable Length 3.0m
Reusable, Monopolar, NON-STERILE condition
Certificate : ISO 13485：2016 ,Packing:1Pcs/Pkg
Reusable Bipolar Cable for R.Wolf
Introduction
The Slinelink bipolar cable is applied to R.Wolf® Instruments for laparoscopic and compatible with Aesculap®, Erbe® ICC International, Conmed® ACMI®, Codman®, Olympus®, Valleylab®, US Standard® and so on.
Bipolar cable for R.Wolf instruments consists of R.Wolf® type connector and 2- Φ4mm banana plug, and the 3m double single-core paralleled wire of silicone material.
The product connects High Frequency Power Supply and neutral electrodes, which offers high frequency power for surgical instrument.
As R.Wolf-compatible reusable bipolar electrosurgical cable, it also supports customization to the required length besides the length of 3m.
Specification
|
Product name |
Bipolar cable for R.Wolf instruments |
|
Item no. |
79063300058 |
|
Generator side |
2- Φ4mm banana plug |
|
Instrument side |
R.Wolf® type connector |
|
Cable length |
10ft(3.0m) |
|
Wire material |
Silicone, gray |
|
Generator type |
Multi-brand compatibility |
|
Disinfecting type |
Medical alcohol |
|
Shelf life |
3 years |
|
Certificate |
ISO 13485:2016 |
Features and application
- Durability and adaptability:
Plastic injection on the basis of silicone wire - as the electrosurgical cable, it is resistant to high temperature, high pressure and wear so that it can be very well adapted to the surgical environment.
- Design for patibility:

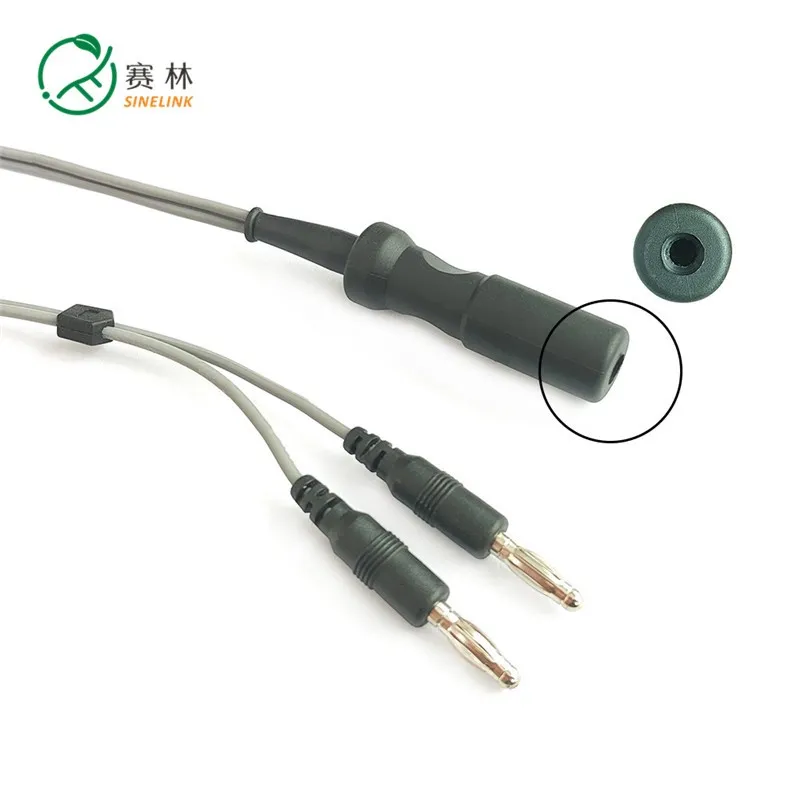

The design of two oval grooves on the surface of R.Wolf® type connector makes it easier to connect and disconnect the instrument.
- Tangle free lead wire:
The wire of bipolar cable for R.Wolf instruments is soft and flexible and the design of double single-core paralleled wire and the wire nail is simple and clever, which avoid tangling during procedures and also make storage and sorting more convenient.
- Repeatability and disinfection:
Disinfect with medical alcohol before and after each use is necessary for reusable cable, which also can extend its service life as soon as possible.
- 100% testing before storage:
Continuity test - 100% continuity test ok, no short-circuit / disconnection / dislocation, conduction impedance <1Ω;
Hi-pot test - The voltage between core and core withstand 1500V/50Hz/60s, leakage current less than 0.25mA (no breakdown, flicker, arc and other phenomena);
Strength - The force to pull out between plug and surgical equipment socket ≥12N, wire rod: 10Ibs(44.5N).
- Comply with EU Directive 2011/65/EU.
Details
(with the wire nail)
FAQ
Q: What is a Reusable Bipolar Cable for Richard Wolf (R.Wolf)?
Q: How do I use a Reusable Bipolar Cable for R.Wolf?
Q: What procedures can be performed with a Reusable Bipolar Cable for R.Wolf?
Q: How do I sterilize a Reusable Bipolar Cable for R.Wolf?
